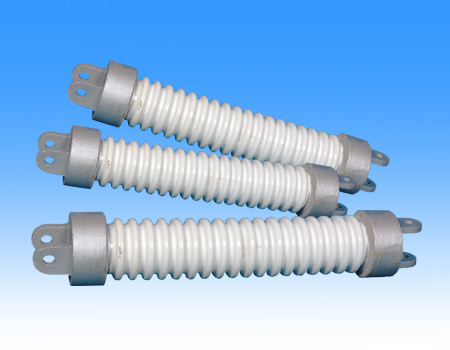

側部振打瓷轉軸圖

    電除塵器設備配套絕緣子，以95%氧化鋁為主要原料，經1700℃高溫?zé)�成，具有機械強度高、介電強度高、耐酸堿、耐高溫的優點。主要適應于電力、冶金、化工、有色金屬等行業的側部振打靜電除塵器。
    The electric dusters are made from 95AI2O3 ceramic formulas as the main raw materials, molded in advanced cold isostatistically press technology, sintered at more than 1700℃ in high temperature tunnel kiln. They have the excellence of high mechanical strength, good thermal conduction, abrasion resistance, acid and alkali proof,high temperature resistant and high dielectric strength ets. They are widely used in static duster equipment for building materials, electric power, metallurgy and chemical industry.


技術條件 Technical conditions
    安裝地海拔高度：≤1000米           Installing place's height above sea leavl: ≤1000m
    工作溫度：0~350℃                  Working temperature: ≤350℃
    抗扭轉負荷：≥4000N·m             Twisting moment:  ≥4000N·m

技術指標 Main technical data

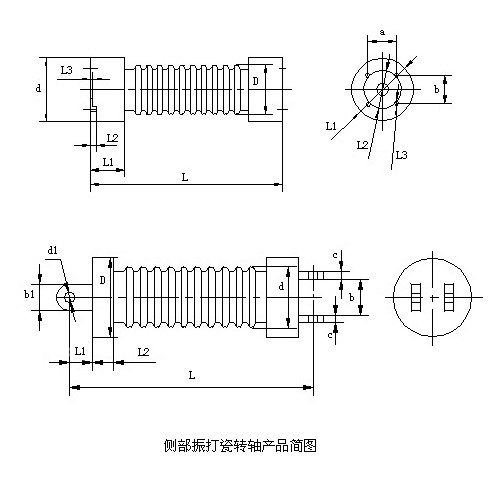

產品型式 Version	產品型號Type	電瓷產品對應型號 electrical ceramic corresponding model	傘群數(個) unbrella fusiform num	主要尺寸 mm
				Main dimension
				L	D	L1	L2	d	d1	d2	d3	a	b
插口式 faucel form	JS11-460-B	JN-07203A	11	460	Φ102	35	53	Φ120	Φ18.5	-	-	-	53
	JS11-560-B		11	560	Φ102	35	53	Φ102	Φ25	-	-	-	32
	JS17-630-K	JN-08001C	17	630	Φ105	35	53	Φ120	Φ18.5	-	-	-	53
	JS18-630-B	JN-08001C	18	630	Φ102	35	53	Φ102	Φ18.5	-	-	-	53
	JS18-630-C		18	630	Φ105	35	53	Φ120	Φ18.5	-	-	-	20
	JS18-630-D		18	630	Φ125	35	53	Φ120	Φ18.5	-	-	-	58
法蘭式 faucel form	JF11-390-A		11	390	Φ80	50	10	Φ120	Φ90	Φ60	4-M10	50	62
	JF11-394-A		11	394	Φ80	50	10	Φ100	Φ80	Φ60	4-M8	50	62
	JF11-390-B	JN-07201A	11	390	Φ102	53	10	Φ120	Φ88	Φ56	4-M10	58	67
	JF11-394-B1	JN-07202A	11	390	Φ102	53	10	Φ120	Φ90	Φ60	4-M10	50	62
	JF18-640-E		18	640	Φ150	80	14	Φ162	Φ111	Φ60	4-M10	50	62
	JF12-460-G		12	460	Φ86	60		Φ140	Φ100	Φ60	4-M12	70.7	70.7

本公司專業生產優質側部振打瓷轉軸等特種陶瓷產品，歡迎購買側部振打瓷轉軸產品到湖南株洲湘龍新材料有限公司來！
